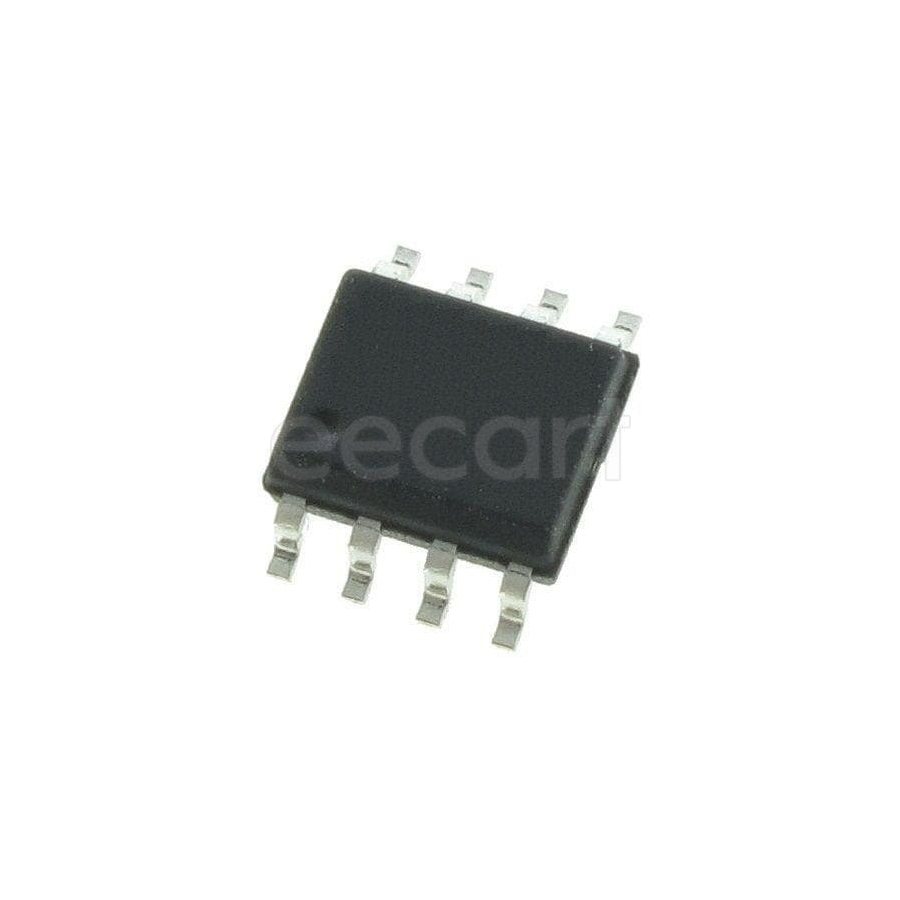

MC10EP05DG
Manufacturer:
On Semiconductor
Mfr.Part #:
MC10EP05DG
Datasheet:
Description:
Logic Gates, Inverters SOIC-8 SMD/SMT AND, NAND ECL Low Level Output Current:50 mA High Level Output Current:-50 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Output Current | 50 mA |
| Number of Circuits | 1 |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 3 V |
| Turn-On Delay Time | 320 ps |
| Propagation Delay | 270 ps |
| High Level Output Current | -50 mA |
| Low Level Output Current | 50 mA |
| Logic Function | AND, NAND |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Number of Gates | 1 |
| Schmitt Trigger Input | No |
| Schedule B | 8542390000 |
| Packaging | Tube |
| RoHS | Compliant |
| Polarity | Inverting |
| Logic Family | ECL |
Stock: 42
Distributors
pcbx
pcbxUnit Price$8.30479
Ext.Price$8.30479
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.30479 | $8.30479 |
| 10 | $5.74513 | $57.45130 |
| 25 | $4.96287 | $124.07175 |
| 50 | $4.55497 | $227.74850 |
| 100 | $4.18060 | $418.06000 |
